  JIS B2220 FLANGE 30K
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China

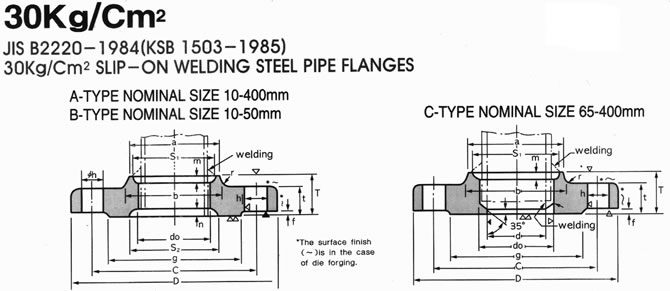

JIS 30K FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. Standard: JIS B2220
2. Type:
SO PLATE, SO HUB, BLIND
3. Pressure:
30KG
4. Size:
DN15 - DN2000
5. Raw Material:
SS400, SF440A, SF390A
6. Process:
Forged

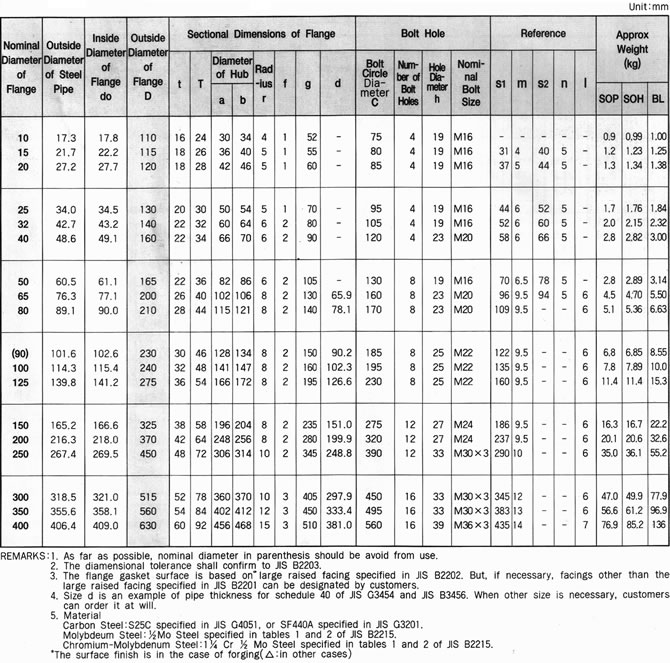

JIS 30K FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD
