    HOME > PRODUCTS > JIS FLANGE > 16KG FLANGE
  JIS B2220 FLANGE 16K
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China

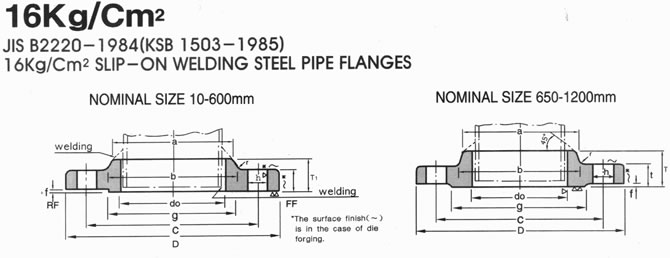

JIS 16K FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. Standard: JIS B2220
2. Type: SO PLATE, SO HUB, BLIND
3. Pressure: 16KG
4. Size: DN15 - DN2000
5. Raw Material: SS400, SF440A, SF390A
6. Process: Forged

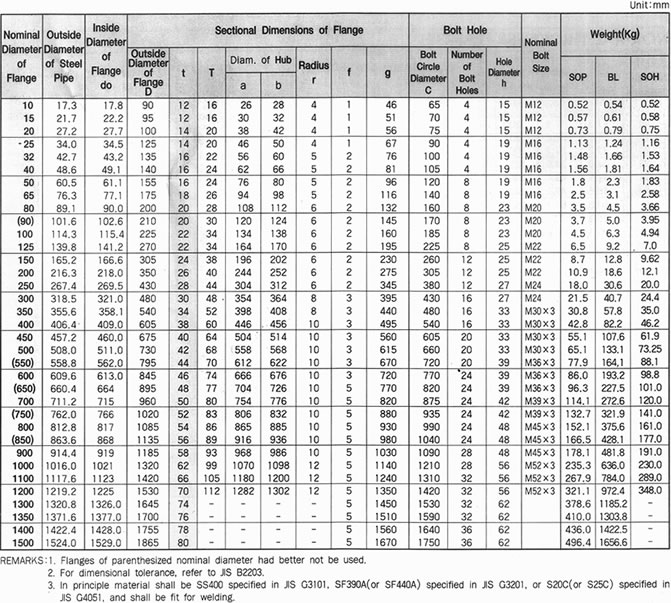

JIS 16K FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD


JIS B2220 FLANGE - JIS FLANGE - FF FLANGE - RF FLANGE - HUB FLANGE - 5K FLANGE - 10K FLANGE - 16K FLANGE - 20K FLANGE - 30K FLANGE - 40K FLANGE - SOP FLANGE - SOH FLANGE - SS400 FLANGE - SF390A FLANGE - SF440A FLANGE - KOREAN FLANGE - FORGED FLANGE - KS FLANGE - KS MARK - KS CERTIFICATE - KS B1503 FLANGE
