  JIS B2220 FLANGE 20K
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China

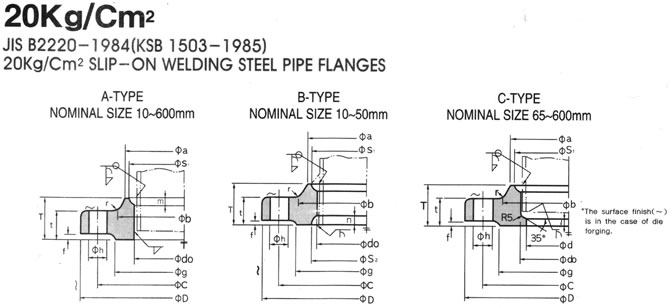

JIS 20K FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. Standard: JIS B2220
2. Type: SO PLATE, SO HUB, BLIND
3. Pressure: 20KG
4. Size: DN15 - DN2000
5. Raw Material: SS400, SF440A, SF390A
6. Process: Forged

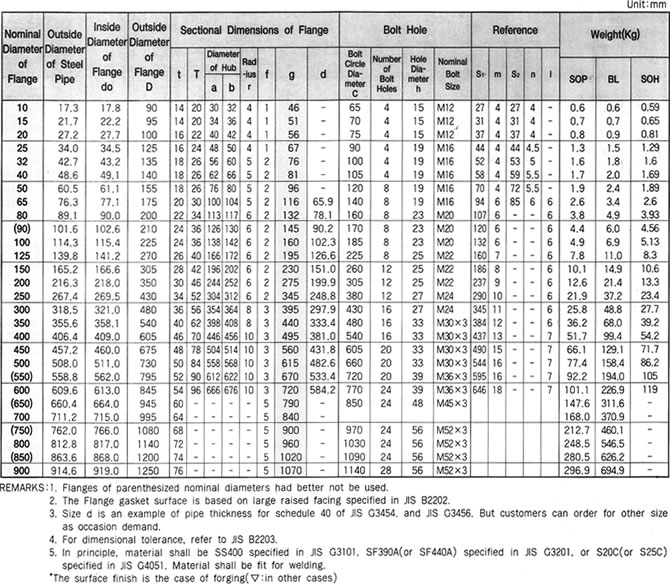

JIS 20K FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD
