  BLIND FLANGE UNI 6093 PN16
stampa
Jinan Hyupshin Flanges Co., Ltd, Forged Flanges, Steel Flanges, Manufacturer, Exporter from Shandong of China, uni blind flange, uni6091, uni6092, uni6093, uni6094, uni6095, blind flange
HYUPSHIN FLANGES
1. Standard: UNI 6093 CIECHE FLANGE
2. Type: Blind Flange, Blank Flange (Flat Face)
3. Pressure:
PN16
4. Size:
DN15 - DN2000, larger Sizes available on request
5. Raw Material:
C22.8, RSt37.2, S235JRG2, C21, A105
6. Process:
Forged, Stamped
7. Basic requirements for Material and Flange
ITALIAN STANDARDS UNI 6093 BLIND FLANGE PN 16

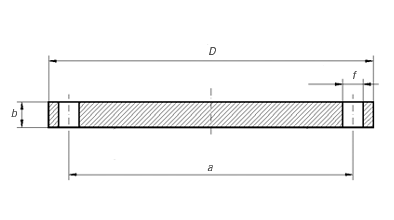

Rated Diameter a b D f Number of holes Threading of the screws Weight* in Kg
15 65 14 95 14 4 M 12 0,71
20 75 16 105 14 4 M 12 1,01
25 85 16 115 14 4 M 12 1,22
32 100 16 140 18 4 M 16 1,80
40 110 16 150 18 4 M 16 2,09
50 125 18 165 18 4 M 16 2,87
65 145 18 185 18 4 M 16 3,65
80 160 20 200 18 8** M 16 4,61
100 180 20 220 18 8 M 16 5,65
125 210 22 250 18 8 M 16 8,12
150 240 22 285 22 8 M 20 10,5
175 270 24 315 22 8 M 20 14,1
200 295 24 340 22 12 M 20 16,2
250 355 26 405 25 12 M 22 25,1
300 410 28 460 25 12 M 22 35,2
350 470 30 520 25 16 M 22 48,2
400 525 32 580 30 16 M 27 63,5
450 585 32 640 30 20 M 27 77,2
500 650 34 715 33 20 M 30 102
*
The weight is approximate and calculated on base 7.85 Kg/dm3
**
For PN10 the flange should have 4 holes
