  EN1092-1 TYPE 11 FLANGE PN25
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China
Shandong Hyupshin Flanges Co., Ltd, Forged Flanges, Steel Flanges, Manufacturer, Exporter from Shandong of China, EN 1092-1 type 11 flange, welding neck flange, weld neck flange, WN flange, WNRF flange
HYUPSHIN FLANGES
1. Standard: EN1092-1
2. Type: Weld Neck Flange, WN Flange (Raised Face)
3. Pressure: PN25
4. Size: DN15 - DN1000, larger Sizes available on request
5. Raw Material: P245GH, P250GH, P265GH, C22.8, S235JR
6. Process: Forged
7. Basic requirements for Material and Flange

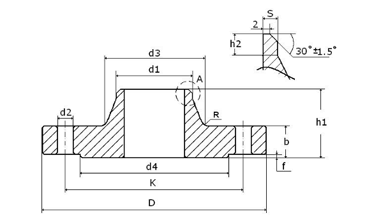

EN 1092-1 TYPE 11 PN25 WNRF FLANGE
Rated Diameter Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 k D b h1 d3 s r h2 d4 f d2 Thread Bolt holes Kg
200 219,1 310 360 30 80 244 6,3 10 16 278 3 26 M24 12 17,100
250 273 370 425 32 88 298 7,1 12 18 335 3 30 M27 12 24,300
300 323,9 430 485 34 92 352 8,0 12 18 395 4 30 M27 16 31,800
350 355,6 490 555 38 100 398 8,0 12 20 450 4 33 M30 16 48,800
400 406,4 550 620 40 110 452 8,8 12 20 505 4 36 M33 16 63,300
450 457 600 670 46 110 500 8,8 12 20 550 4 36 M33 20 76,000
500 508 660 730 48 125 558 10,0 12 20 615 4 36 M33 20 97,000
600 610 770 845 48 125 660 11,0 12 20 720 5 39 M36 20 121,000
700 711 875 960 50 129 760 14,2 12 20 820 5 42 M39 24 155,000
800 813 990 1085 53 138 864 16,0 12 22 930 5 48 M45 24 205,000
900 914 1090 1185 57 148 968 17,5 12 24 1030 5 48 M45 28 249,000
1000 1016 1210 1320 63 160 1070 20,0 16 24 1140 5 56 M52 28 338,000

DIN FLANGE - UNI FLANGE - EN 1092-1 FLANGE - PN6 FLANGE - PN10 FLANGE - PN16 FLANGE - PN25 FLANGE - PN40 FLANGE - ND6 FLANGE - ND10 FLANGE - ND16 FLANGE - ND25 FLANGE - ND40 FLANGE - PLATE FLANGE - BLIND FLANGE - LOOSE FLANGE - LAPPED FLANGE - THREADED FLANGE - SCREWED FLANGE - WELDING NECK FLANGE - SLIP ON FF FLANGE - SLIP ON BOSSED FLANGE - TYPE 01 FLANGE - TYPE 02 FLANGE - TYPE 05 FLANGE - TYPE 11 FLANGE - TYPE 13 FLANGE - NFE29203 FLANGE - NS FLANGE - ISO7005-1 FLANGE - COLD GALVANIZED FLANGE - ELECTRO GALVANIZED FLANGE - S235JRG2 FLANGE - C22.8 FLANGE - RST37.2 FLANGE - P245GH FLANGE - P250GH FLANGE - P265GH FLANGE - A105 FLANGE
