  TABLE D FLANGE BS 10
Jinan Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China
Jinan Hyupshin Flanges Co., Ltd, Flanges Manufacturer, Exporter from Shandong of China, BS T/D Flange, BS Table D Flange
HYUPSHIN FLANGES
1. Standard: BS10 TABLE D
2. Type:
PL, SO, BL, THR, WN (Flat Face)
3. Pressure:
Class 150
4. Size:
DN15 - DN2000
5. Raw Material:
RSt37.2, C22.8, S235JR, A105
6. Process:
Forged, Stamped
7. Basic requirements for Material and Flange
BRITISH BS 10 TABLE D FLANGE SPECIFICATION

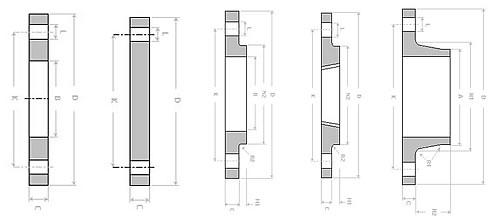

N.B. SIZE D K L A C N1 N2 B H1 H2 R1 R2 HOLES
IN mm
½" 15 95.3 66.8 14.5 21.3 4.8 27.0 33.3 22.4 9.5 22.2 6.4 1.6 4
¾" 20 101.6 73.2 14.5 26.7 4.8 33.3 38.1 27.7 11.1 22.2 6.4 1.6 4
1" 25 114.3 82.6 14.5 33.5 4.8 42.9 47.6 34.6 11.1 22.2 6.4 1.6 4
1 ¼" 32 120.7 87.4 14.5 42.2 6.4 49.2 55.6 43.2 11.1 25.4 6.4 1.6 4
1 ½" 40 133.4 98.6 14.5 48.3 6.4 58.7 61.9 49.5 12.7 28.6 6.4 1.6 4
2" 50 152.4 114.3 17.5 60.5 7.9 69.9 74.6 62.0 12.7 28.6 6.4 1.6 4
2 ½" 65 165.1 127.0 17.5 73.2 7.9 82.6 90.5 74.7 15.9 31.8 6.4 1.6 4
3" 80 184.2 146.1 17.5 88.9 9.7 101.6 106.4 90.7 15.9 34.9 6.4 1.6 4
3 ½" 88 203.2 165.1 17.5 101.6 9.7 114.3 119.1 103.4 17.5 34.9 6.4 1.6 4
4" 100 215.9 177.8 17.5 114.3 9.7 130.2 133.4 116.1 19.1 41.3 9.5 3.2 4
5" 125 254.0 209.6 17.5 141.2 12.7 152.4 160.3 143.8 19.1 44.5 9.5 3.2 8
6" 150 279.4 235.0 17.5 168.4 12.7 184.2 185.7 171.7 19.1 47.6 9.5 3.2 8
8" 200 336.6 292.1 17.5 219.2 12.7 241.3 241.3 221.5 22.2 50.8 9.5 3.2 8
10" 250 406.4 355.6 22.2 273.1 16.0 292.1 298.5 276.4 27.0 63.5 9.5 3.2 8
12" 300 457.2 406.4 22.2 323.9 19.1 342.9 349.3 325.9 28.6 69.9 9.5 4.8 12
14" 350 527.1 469.9 25.4 355.6 22.2 406.4 - 359.2 - 73.0 9.5 4.8 12
16" 400 577.9 520.7 25.4 406.4 22.2 - - 410.5 - - - - 12
18" 450 641.4 584.2 25.4 457.2 25.4 - - 461.8 - - - - 12
20" 500 704.9 641.4 25.4 508.0 28.6 - - 513.1 - - - - 16
24" 600 825.5 755.7 28.7 609.6 31.8 - - 616.0 - - - - 16
British Standard BS 10 : 1962 - Specification for Flanges and Bolting for Pipes, Valves, and Fittings. This covers plain, boss, integrally cast or forged, and welding neck type flanges, in ten tables. Although BS 10 is obsolescent, it remains in use for the dimensions of light duty, economy stainless steel flanges in applications where corrosion resistance and/or hygiene, rather than high pressures and temperatures, are the primary considerations. The following tables detail the applicable standard dimensions from Tables D, E, F and H of BS 10.
