    HOME > PRODUCTS > ANSI/ASME FLANGE > B16.5 BLIND FLANGE
  BLIND FLANGE CLASS 150
Shandong Hyupshin Flanges Co., Ltd produce forged flanges standard in ANSI, AWWA, DIN, UNI, EN1092-1, BS4504, BS T/D, SABS1123, GOST12820-80, NFE29203, JIS B2220, KS B1503, ISO7005-1, NS, AS, carbon steel, stainless steel, manufacturer, exporter from Shandong of China
Shandong Hyupshin Flanges Co., Ltd supply ANSI B16.5, ASA B16.5, ASME B16.5 blind flange RF, blank flange RF, Rating Class in 150LBS, 300LBS, 400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS, A105, A36, A350 LF, 304, 316, 316L
HYUPSHIN FLANGES
1. Standard: ANSI B16.5, ASME B16.5
2. Type: Blind Flange, Blank Flange (Raised Face)
3. Pressure: Class 150
4. Size: 1/2" - 24", larger Sizes available on request
5. Raw Material: Carbon Steel: ASTM A105, A350
6. Process: Forged or Stamped
7. ASTM raw material specification

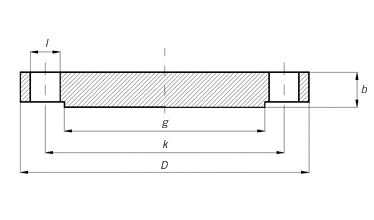

ANSI/ASME/ASA B16.5 150lb/sq.in. Flange BLIND-RF
ø
D
b
g
k
Holes
l
Kg.
1/2"
88,9
11,1
34,9
60,3
4
15,9
0,400
3/4"
98,4
12,7
42,9
69,8
4
15,9
0,700
1"
107,9
14,3
50,8
79,4
4
15,9
0,900
1 1/4"
117,5
15,9
63,5
88,9
4
15,9
1,300
1 1/2"
127,0
17,5
73,0
98,4
4
15,9
1,600
2"
152,4
19,0
92,1
120,6
4
19,0
2,600
2 1/2"
177,8
22,2
104,8
139,4
4
19,0
4,100
3"
190,5
23,8
127,0
152,4
4
19,0
5,000
3 1/2"
215,9
23,8
139,7
177,8
8
19,0
6,400
4"
228,6
23,8
157,2
190,5
8
19,0
7,100
5"
254,0
23,8
185,7
215,9
8
22,2
9,000
6"
279,4
25,4
215,9
241,3
8
22,2
11,800
8"
342,9
28,6
269,9
298,4
8
22,2
21,000
10"
406,4
30,2
323,4
361,9
12
25,4
30,000
12"
482,6
31,7
381,0
431,8
12
25,4
45,000
14"
533,4
34,9
412,7
476,2
12
28,6
59,000
16"
596,9
36,5
469,9
539,9
16
28,6
79,000
18"
635,0
39,7
533,4
577,8
16
31,7
97,000
20"
698,5
42,9
584,2
635,0
20
31,7
124,000
22"
749,3
46,0
641,2
692,1
20
34,9
151,000
24"
812,8
47,6
692,1
749,3
20
34,9
188,000
NOTE:
1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.
